Postman TLS setup for Sage X3 GraphQL (CA chain)

Use this when Postman (or curl or node) shows TLS errors such as “Self-signed certificate in certificate chain” or “unable to verify the first certificate”.

Why this error occurs

• Your client does not trust the endpoint’s certificate chain (missing intermediate or root CA). You need to concatenate a root and intermediate certificate.

Steps

1) Download CA certs (GoDaddy)

• Root: https://certs.godaddy.com/repository/gdroot-g2.crt
• Intermediate: https://certs.godaddy.com/repository/gdig2.crt.pem

2) Build a chain file

```bash
cat gdig2.crt.pem gdroot-g2.crt > gdchain-g2.pem
```

3) Verify with OpenSSL

```bash
openssl s_client -connect <host>:<port> -CAfile ./gdchain-g2.pem </dev/null
```

  Expected: no “unable to verify” errors.

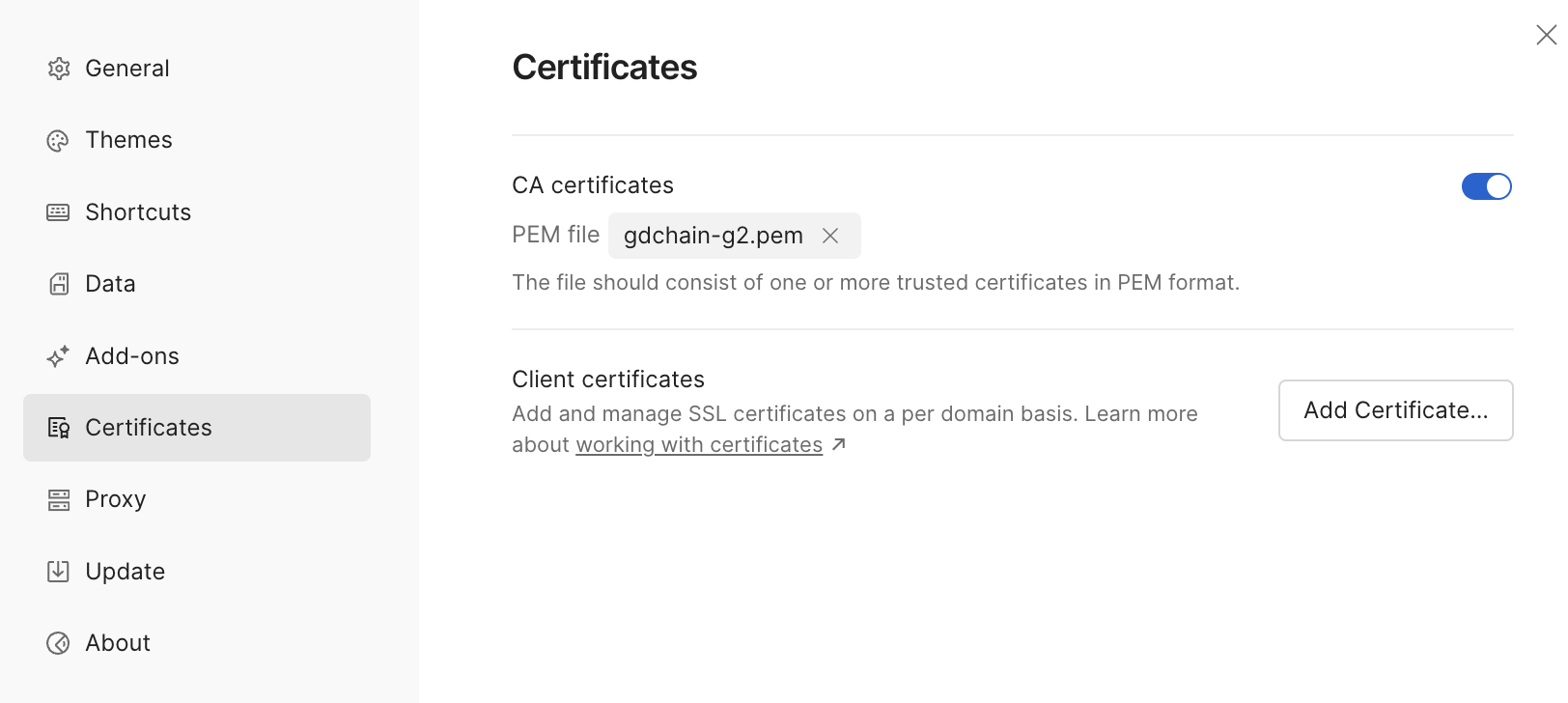

4) Configure Postman

- Open Settings > Certificates.
- In “CA Certificates”, Add and select `gdchain-g2.pem`.
- Ensure it applies to your domain:port and is enabled.
- Retry your request.

Alternatively

Optionally, it’s possible instead to set the certificates in node.js or inside an Ubuntu trust store. Here’s how:

For Node.js:

```bash
export NODE_EXTRA_CA_CERTS=/absolute/path/gdchain-g2.pem
node app.js
```

For Ubuntu trust store inside containers/VMs:

```bash
sudo install -m 0644 gdchain-g2.pem /usr/local/share/ca-certificates/gdchain-g2.crt
sudo update-ca-certificates
```

General Notes

• Only trust CA bundles you control and understand.
• For GraphQL auth, first create a Connected application in Sage X3, then request a JWT bearer token and send it in Authorization: Bearer <token> headers. See the GraphQL Quick Start and Authentication guides.
